glossaryWhat is concrete cover in Eurocode 2

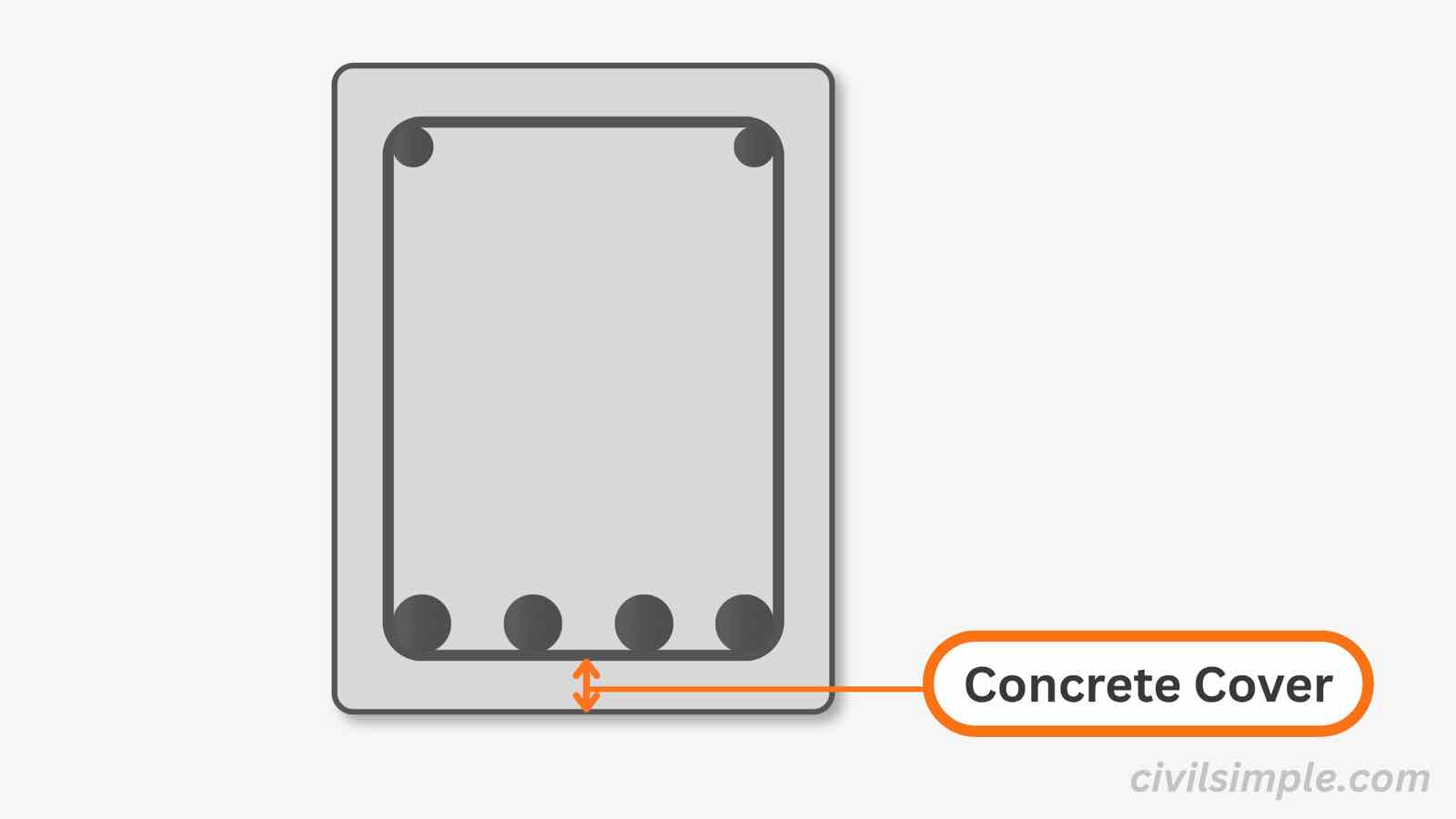

Concrete cover is the distance between outermost reinforcement and concrete surface. A must-have component for every reinforced concrete structure due to durability, fire resistance and bonding performance. Concrete cover is determined by code requirements and exposure conditions.
-
glossaryWhat is effective depth?

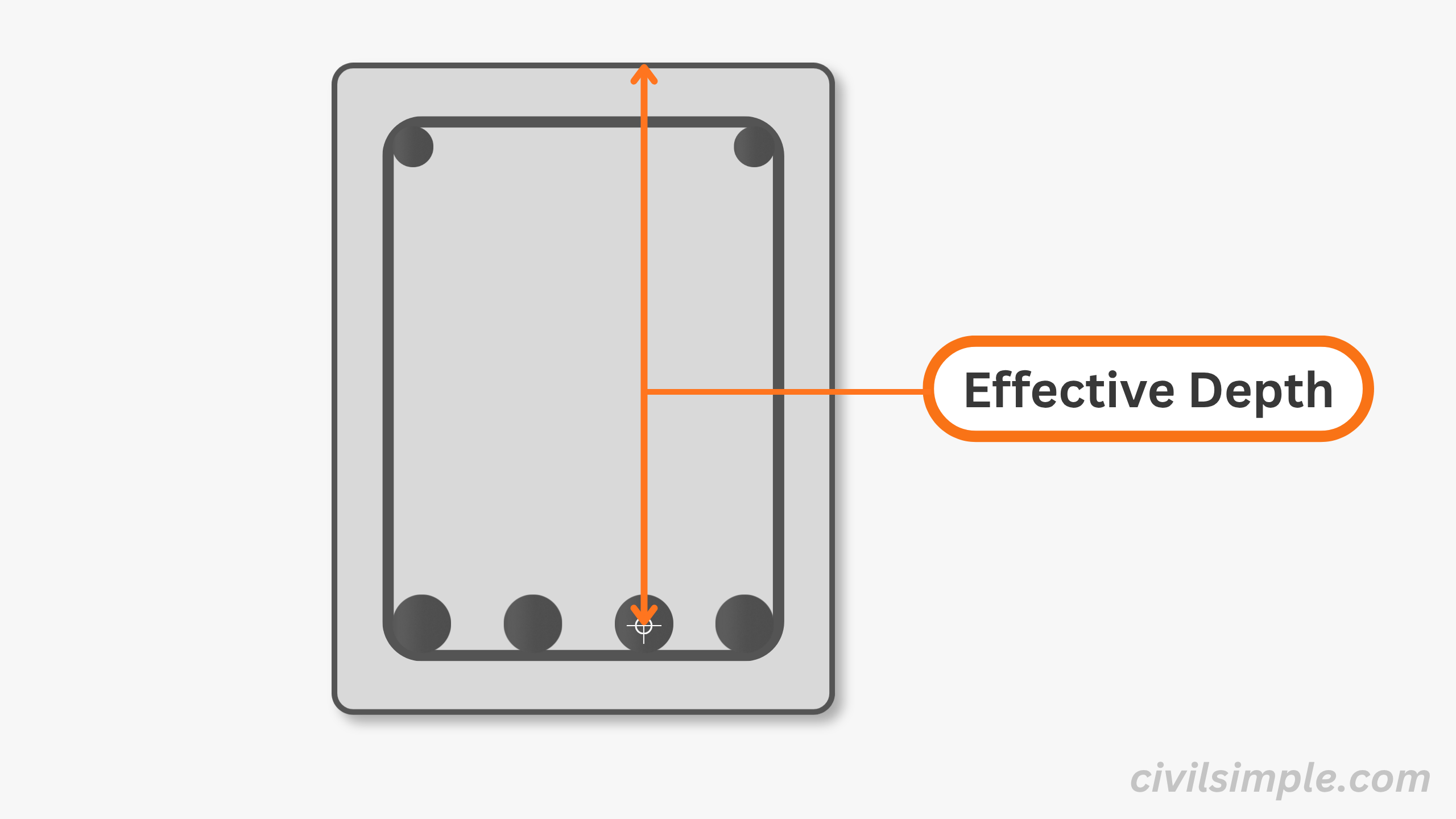

Effective depth is distance from outermost concrete from compression side to centroid of reinforcement in the tension side. Tension concrete is assumed cracked and neglected in calcaultion, so tensile reinforcement position is critical.
-
glossaryWhat is neutral axis?

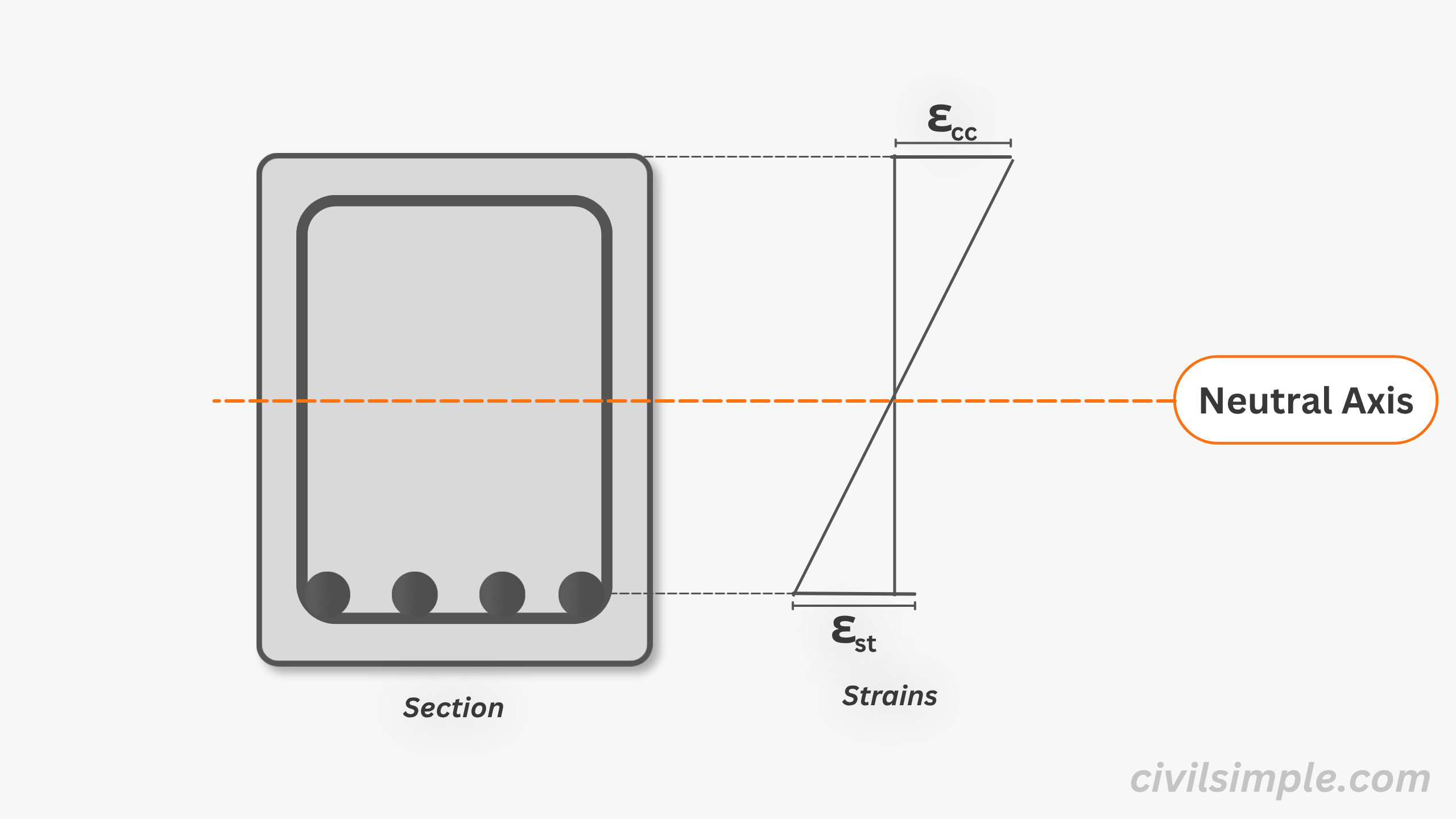

Neutral axis is an imaginary line in a reinforced concrete section where longitudinal strain is zero. It separates the compression and tension zones, and its position depends on loading, material properties, and section geometry.
-

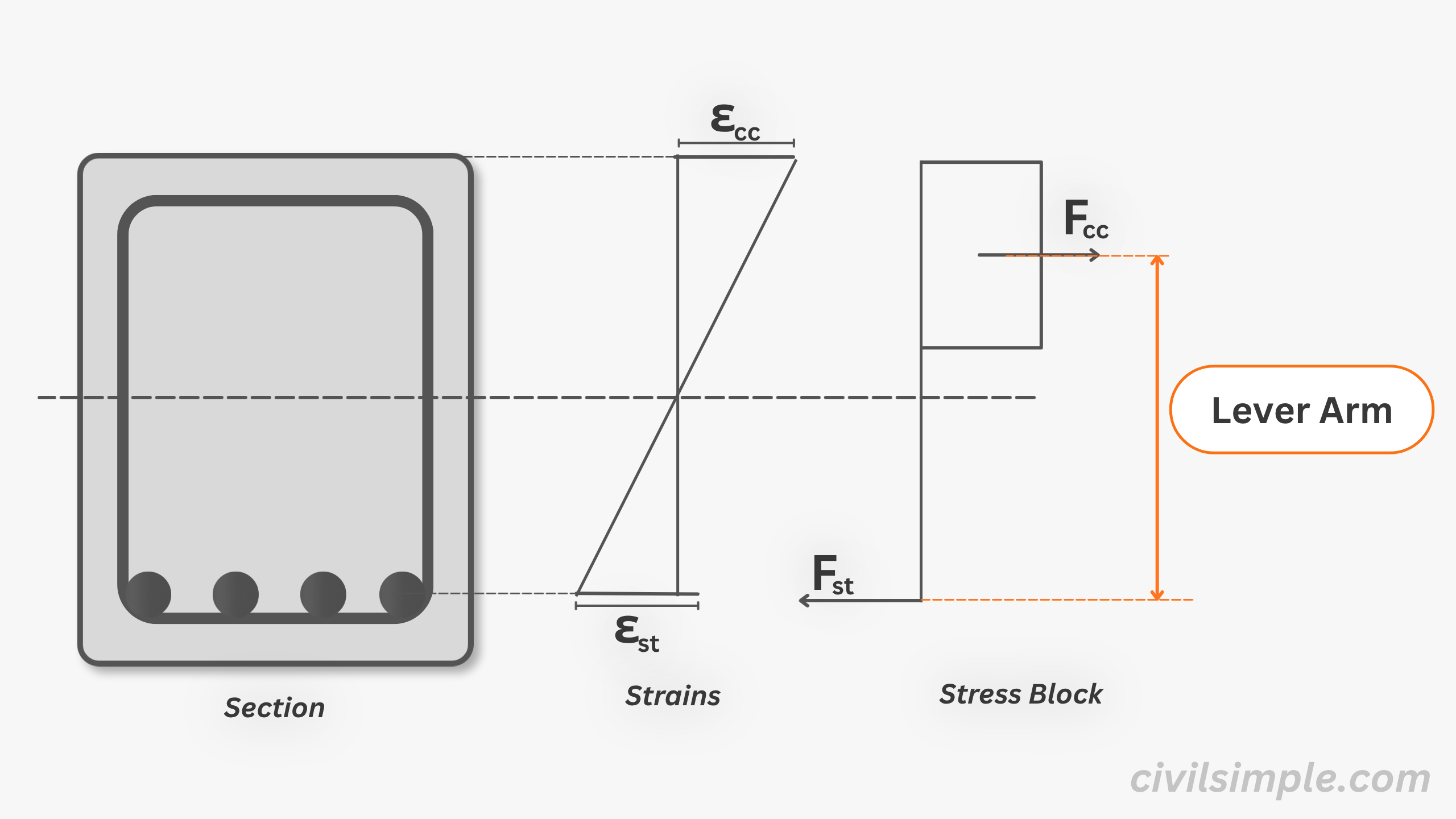

glossaryWhat is lever arm?
The lever arm is the distance between the centre of the compression force and the centre of the tension force acting on a section. It is a key parameter in moment capacity calculations. Understanding the strain distribution and stress–strain behaviour of concrete and steel is essential for determining the lever arm.
-

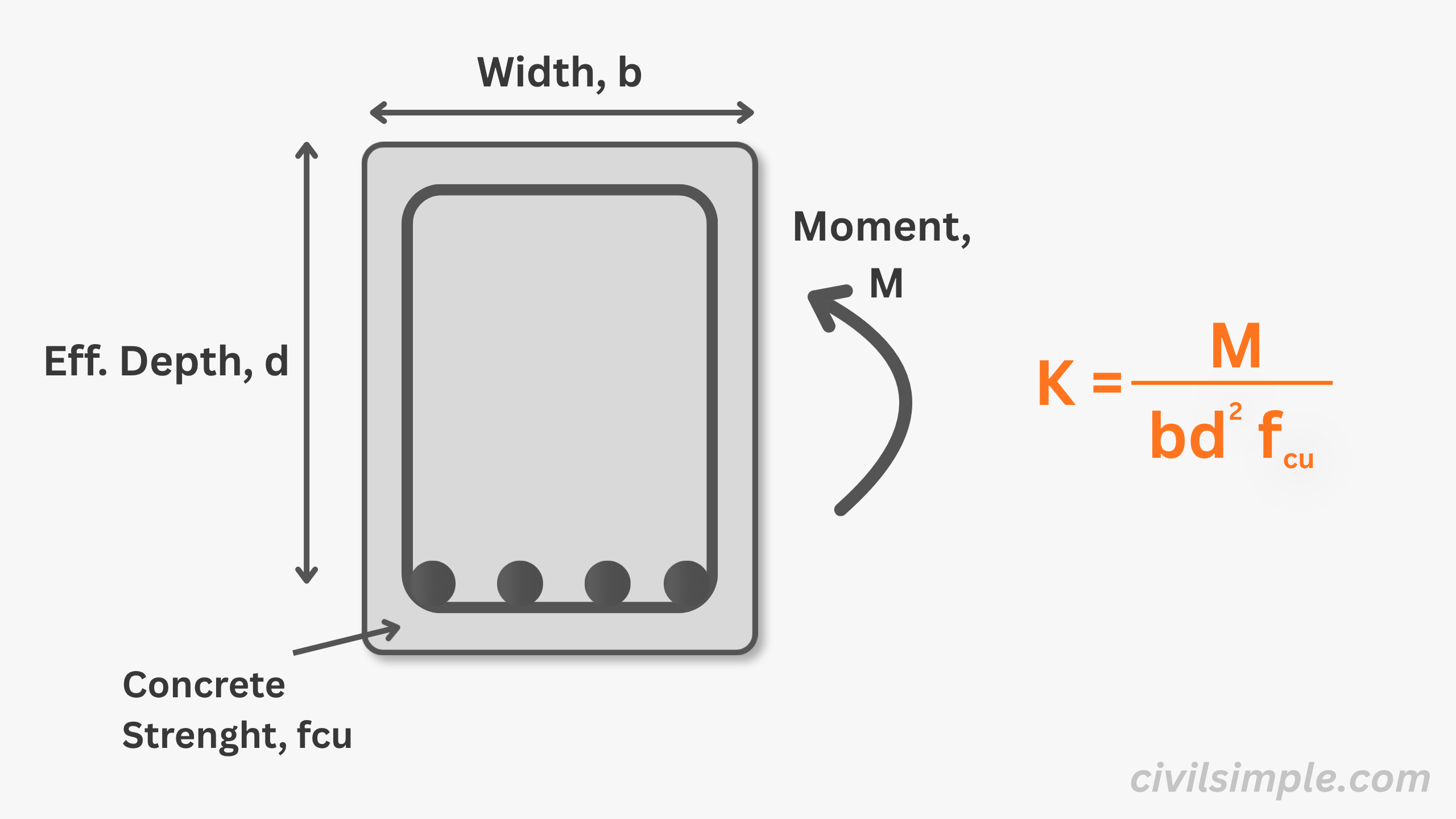

glossaryWhat is K coefficient?
K is a unitless coefficent defined as M/(fck • b•d²). It represents the ratio of design moment to section capacity parameters (width, effective depth, and concrete strength). It helps quickly assess whether a section satisfies code requirements, including ductility and compression zone adequacy, and provides a convenient way to determine the lever arm ratio (z/d) and hence the required tension reinforcement.
-

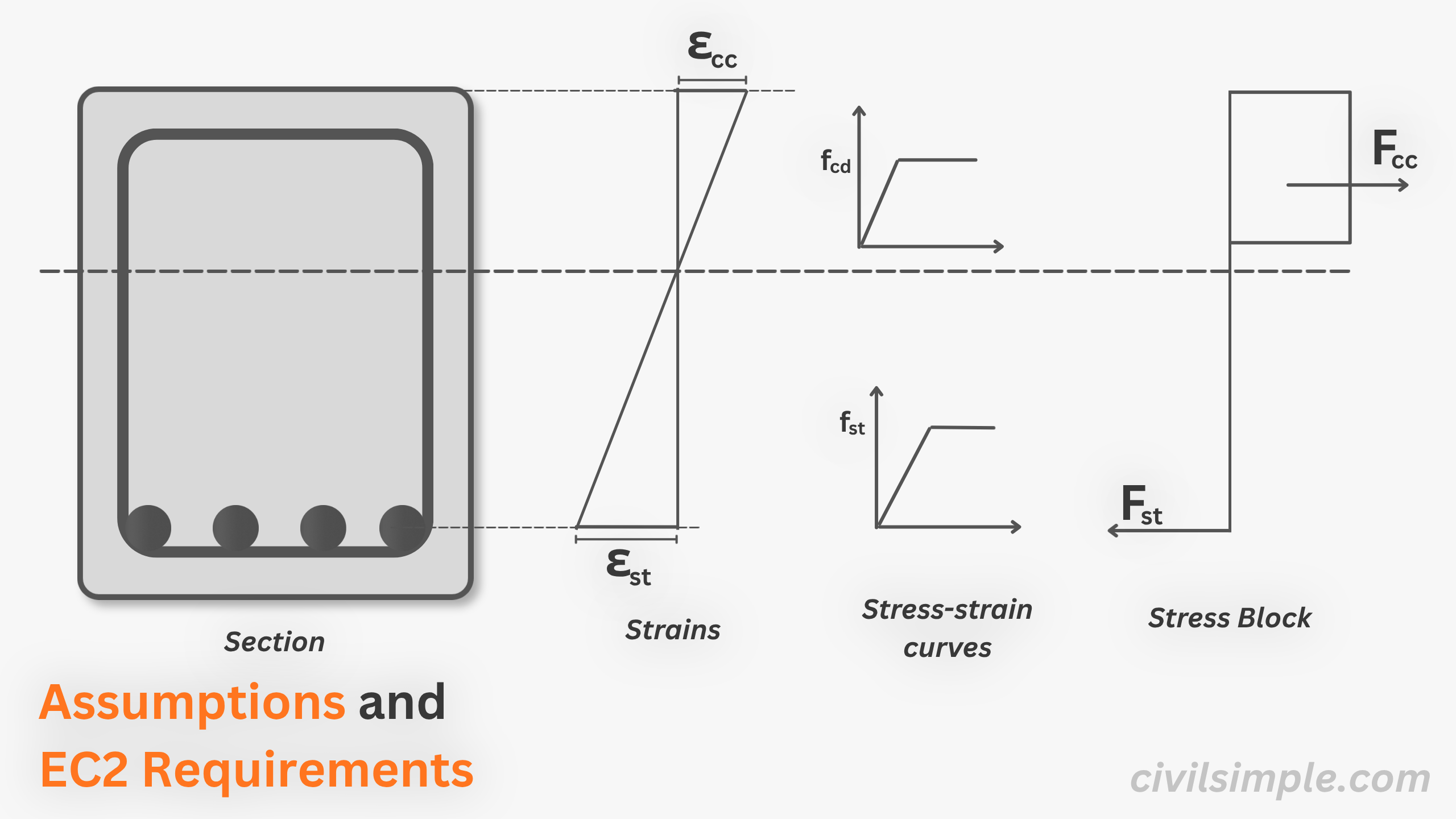

assumptionsEC2 Bending Design - 6 Fundamental Assumptions and 3 Limitation
Learn the six key assumptions used in Eurocode 2 (EC2) bending design for reinforced concrete beams and slabs, including strain distribution, the stress block, force equilibrium, and ductility requirements.
-

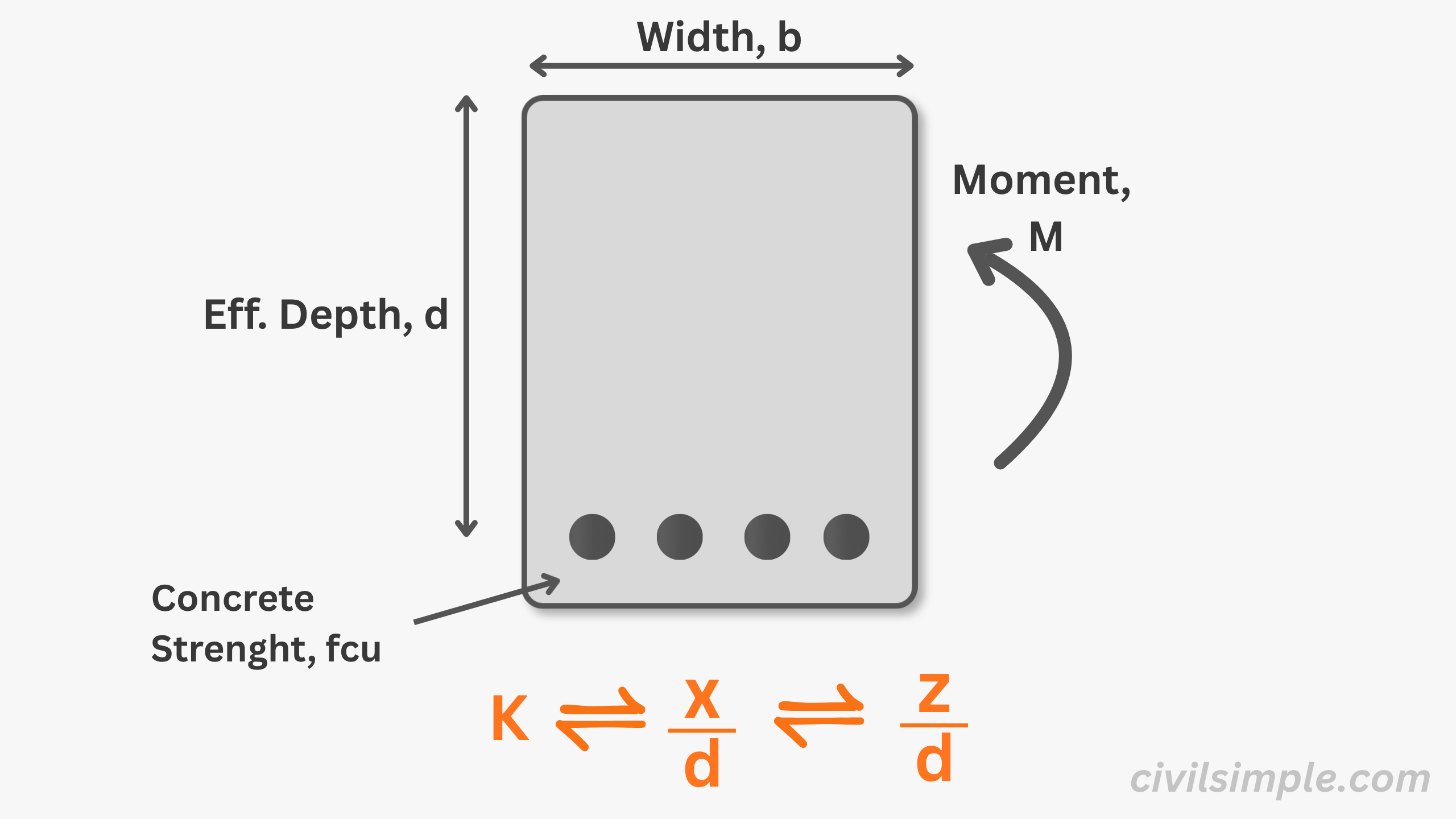

proofEC2 Bending Design - Derivation and Limits of x/d, z/d and K
Understand the relationship between x/d, z/d and K in EC2 bending design. Learn how these equations are derived and why their limits are important.
-
work-exampleWork Example of Moment Resistance of Reinforced Concrete Section in Eurocode 2

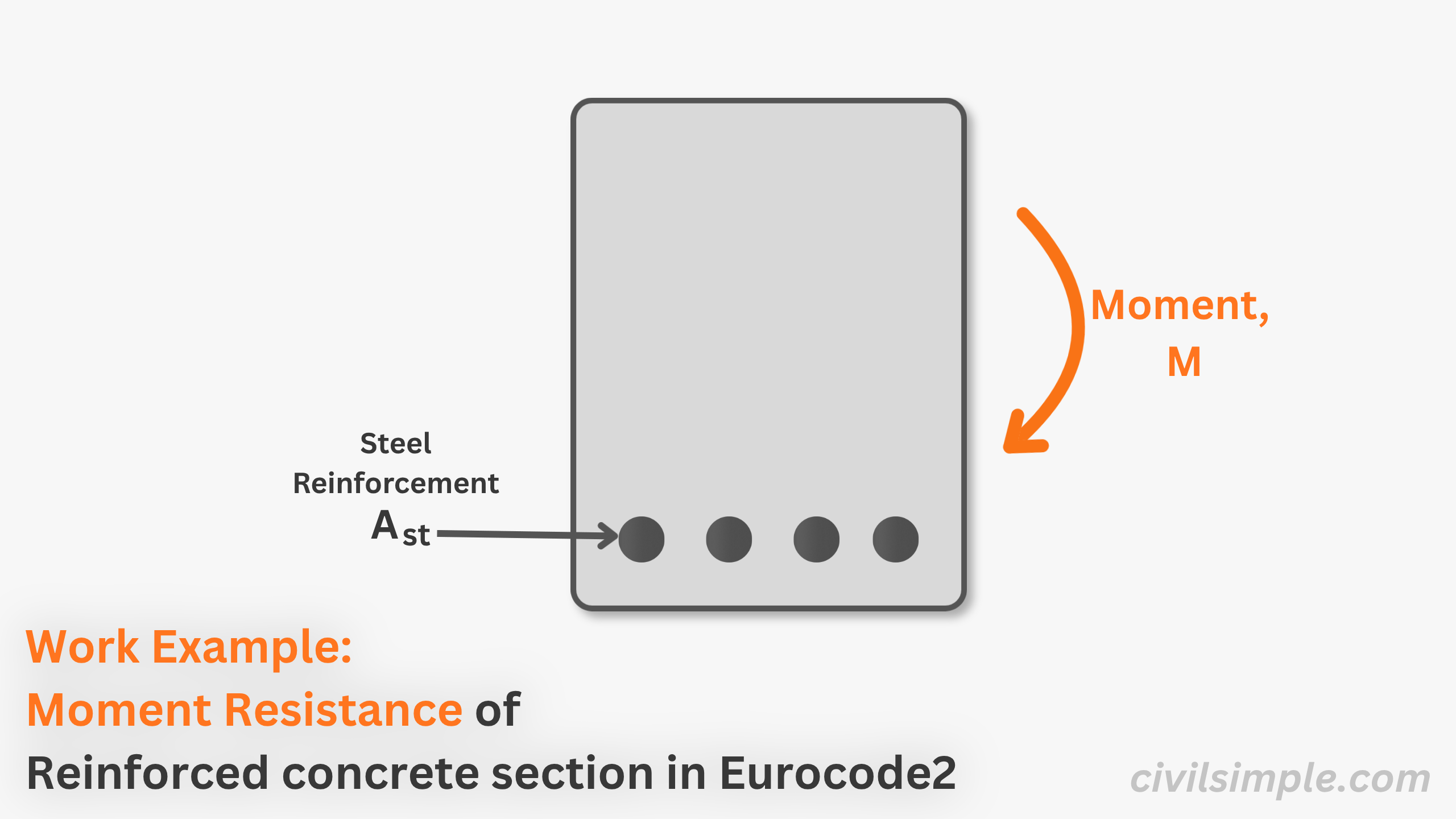

A work example about moment resistance referencing to eurocode 2(BSEN1992-1-1:2004) for reinforced concrete section.
-
work-exampleWork Example of Tension Reinforcement for Moment Design of Reinforced Concrete Section in Eurocode 2

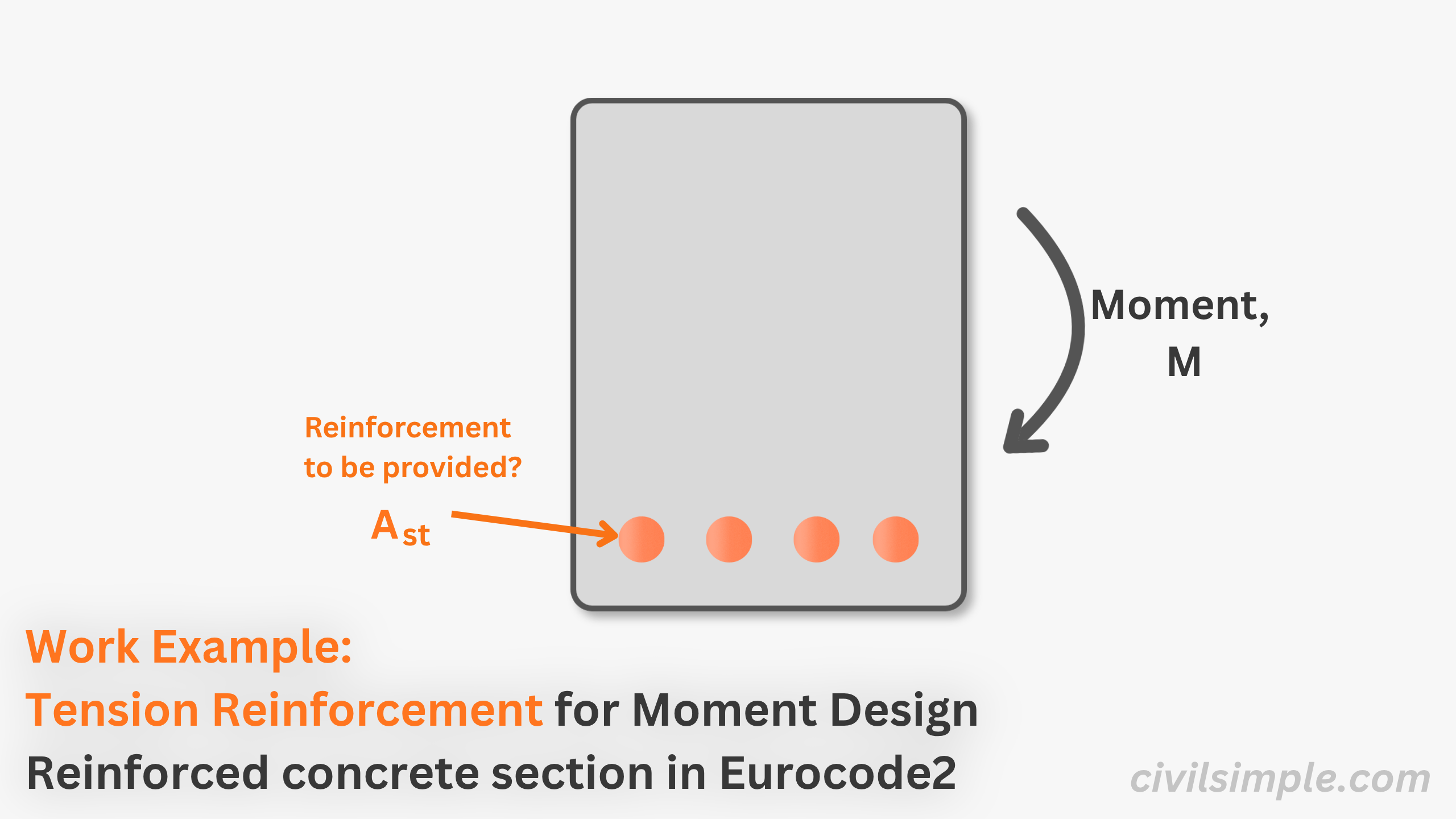

A work example about tension reinforcement for moment design referencing to eurocode 2(BSEN1992-1-1:2004) for reinforced concrete section.
-

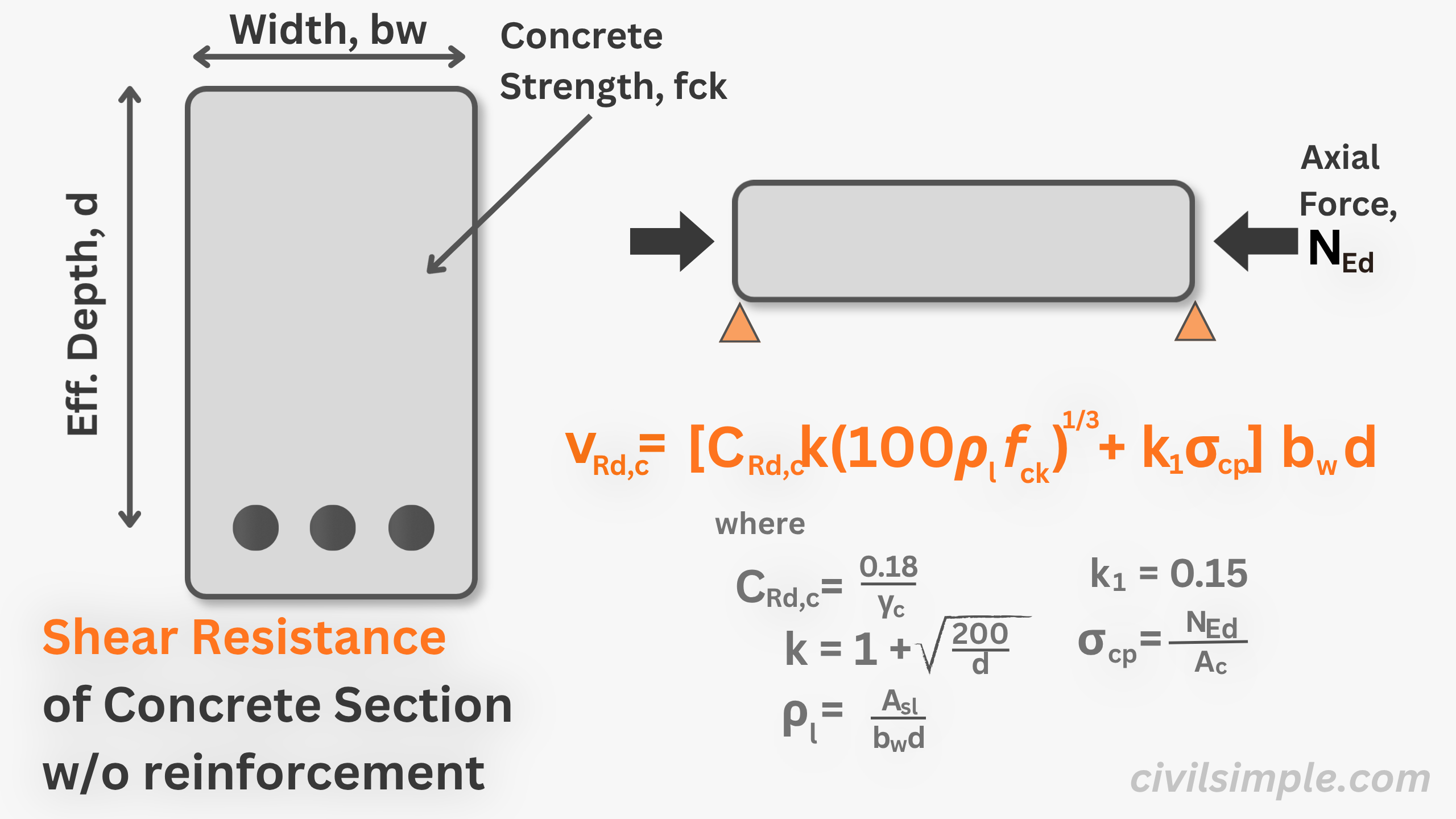

formulaEC2 Shear Resistance of Concrete (V_Rd,c) Calculator & Explanation
Calculate the EC2 shear resistance of concrete (V_Rd,c) and learn how Eurocode 2 determines shear capacity without shear reinforcement.
-

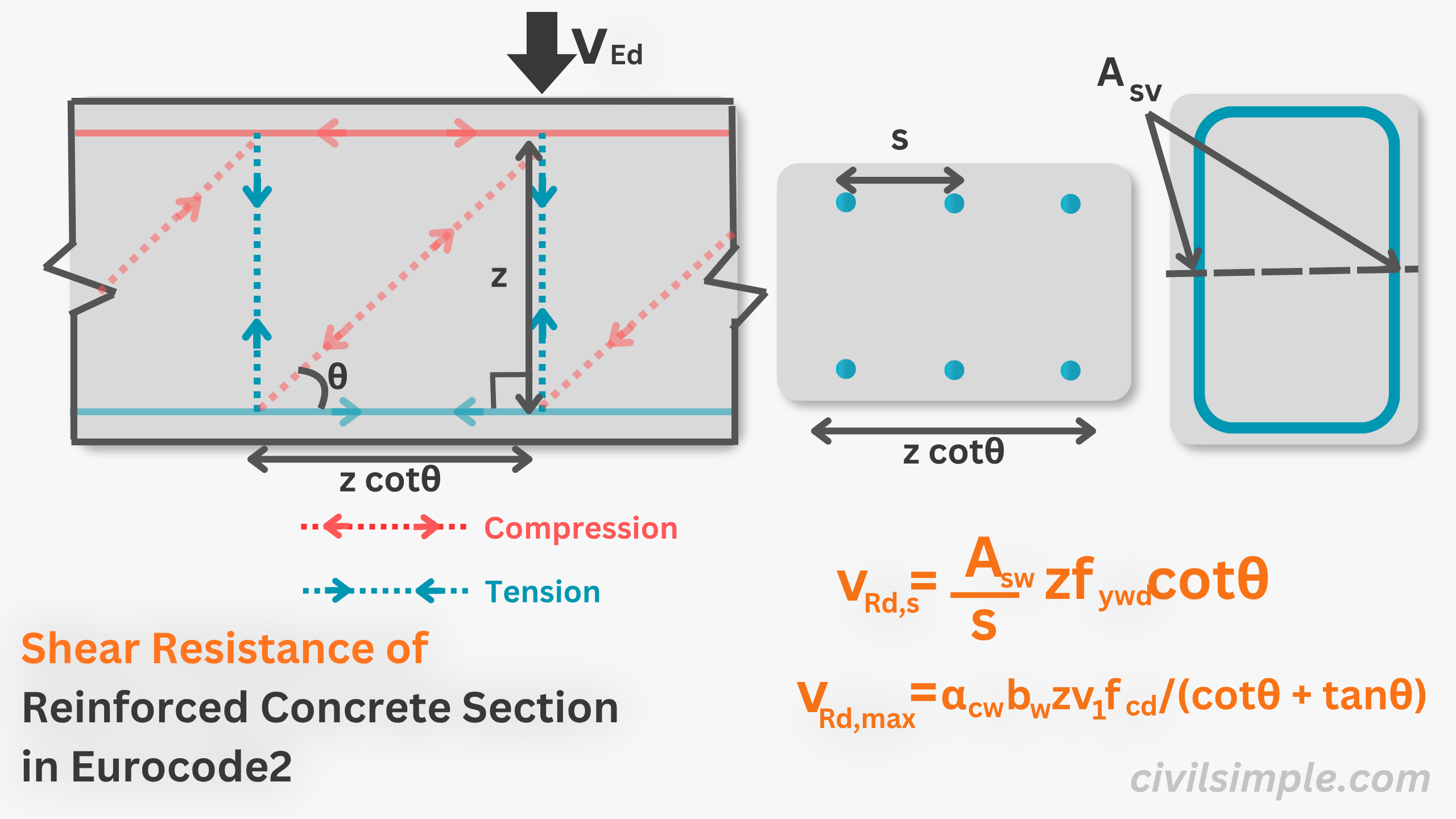

formulaWhat is shear resistance of reinforced concrete section in Eurocode 2?
Learn the fundamentals of shear and shear resistance, including how to calculate the shear resistance of reinforced concrete sections in accordance with Eurocode 2. This article also covers the key influencing factors and the design steps for handling shear in different scenarios.
-
proofFundamental Concept of Shear Reinforcement Design of Reinforced Concrete Section in Eurocode 2

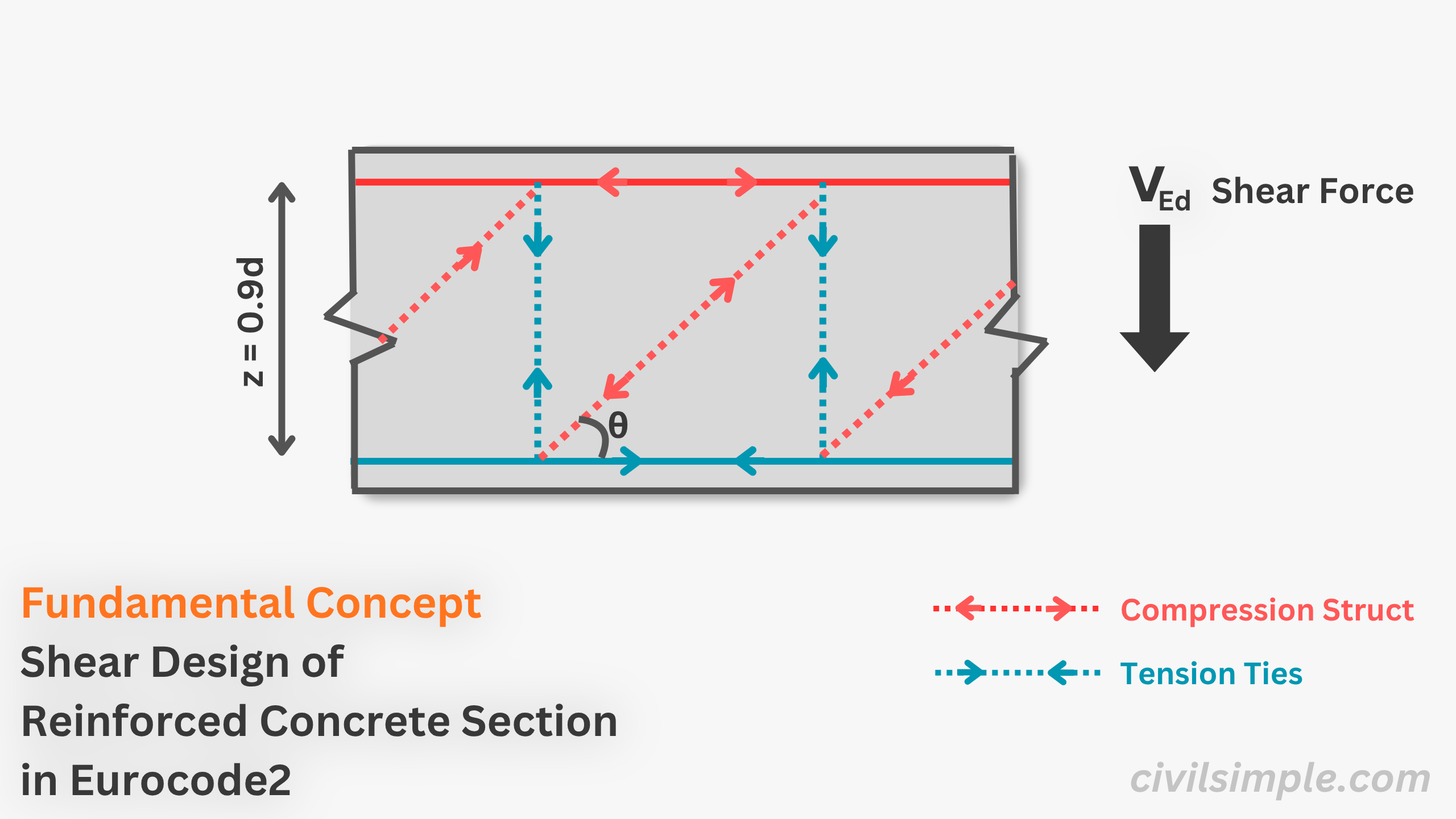

A overview about design method (Truss Model) used in eurocode 2 for shear design and corresponding derived of vertical shear reinforecement equations 6.8 and 6.9 of BSEN1992-1-1:2004.
-
work-exampleWork Example of Shear Resistance of Reinforced Concrete Section in Eurocode 2

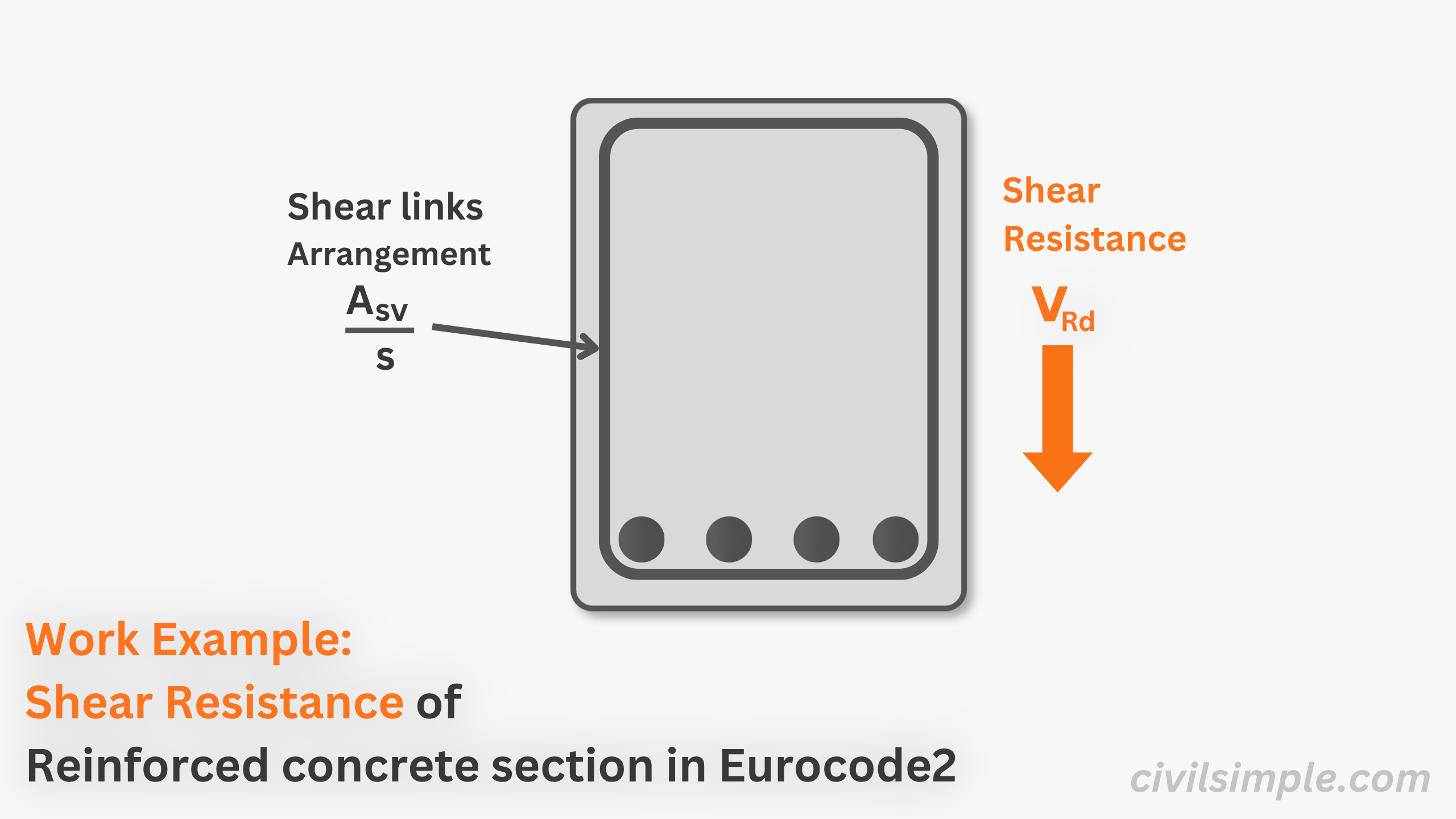

A work example about shear resistance referencing to eurocode 2(BSEN1992-1-1:2004) for reinforced concrete section.
-
work-exampleEC2 Shear Links Design - Worked Example

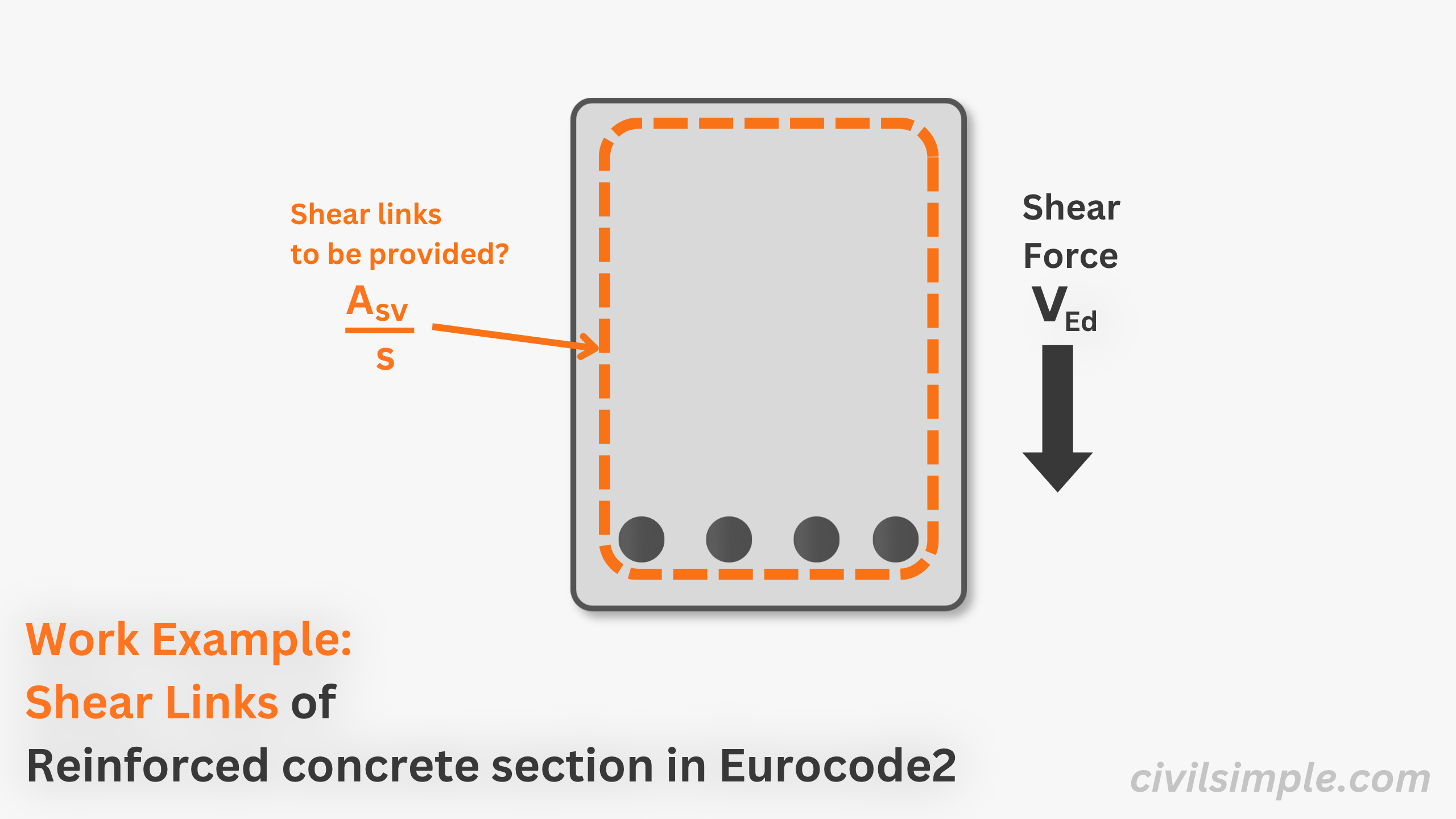

Worked example - shear links design for a 500×600 mm RC beam to Eurocode 2 (EC2). Step-by-step from V_Ed to Asw/s with suggested table of shear links arrangement.
-

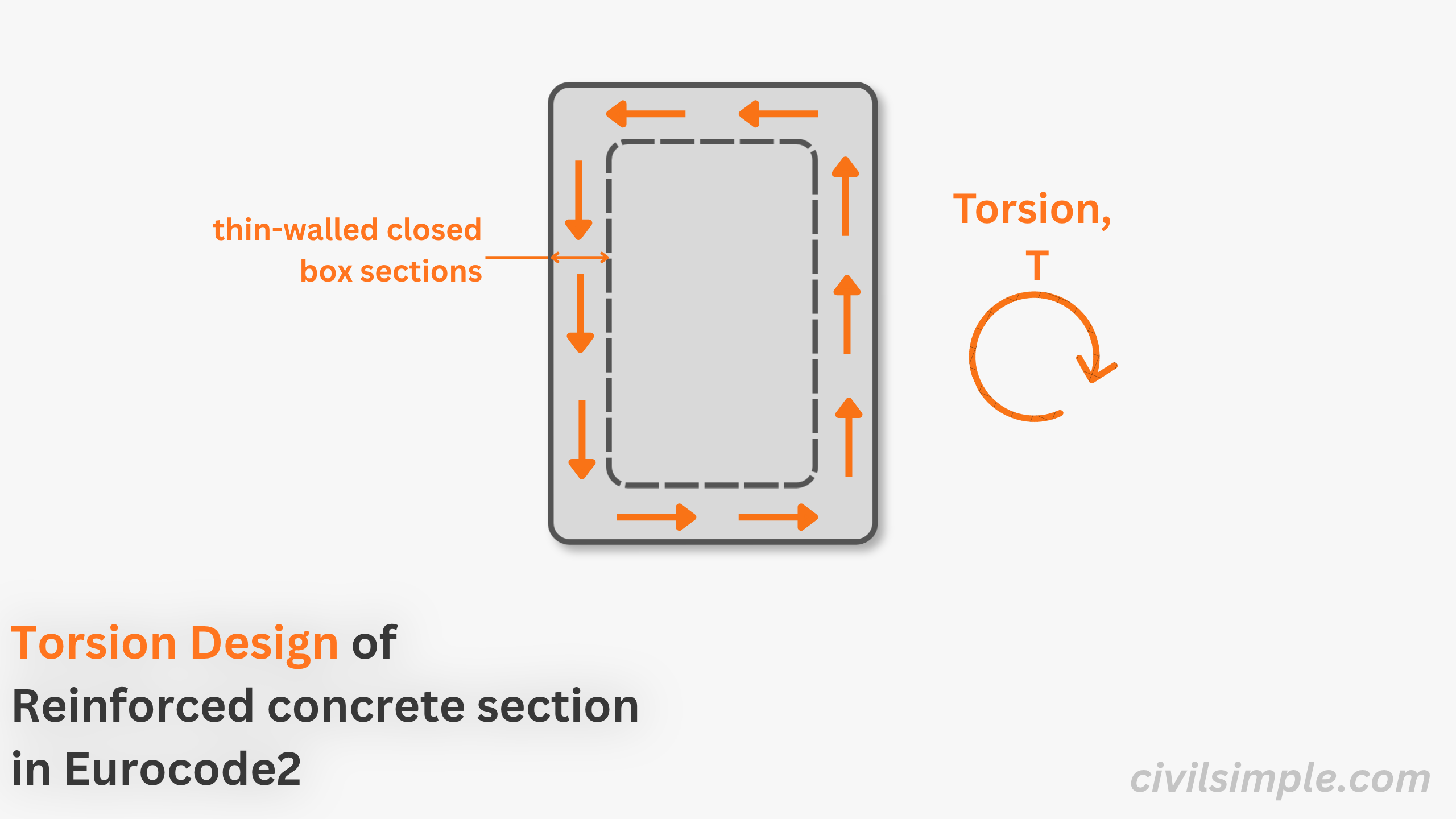

formulaTorsion Design of Reinforced Concrete Section - Theory, Equations & Calculation Guide (EC2)
Learn EC2 torsion design for reinforced concrete beams with interactive SVG diagrams, design equations, and a step-by-step calculation guide.
-
proofThin-Walled Torsion Equation (EC2) - Derivation & Interactive Guide

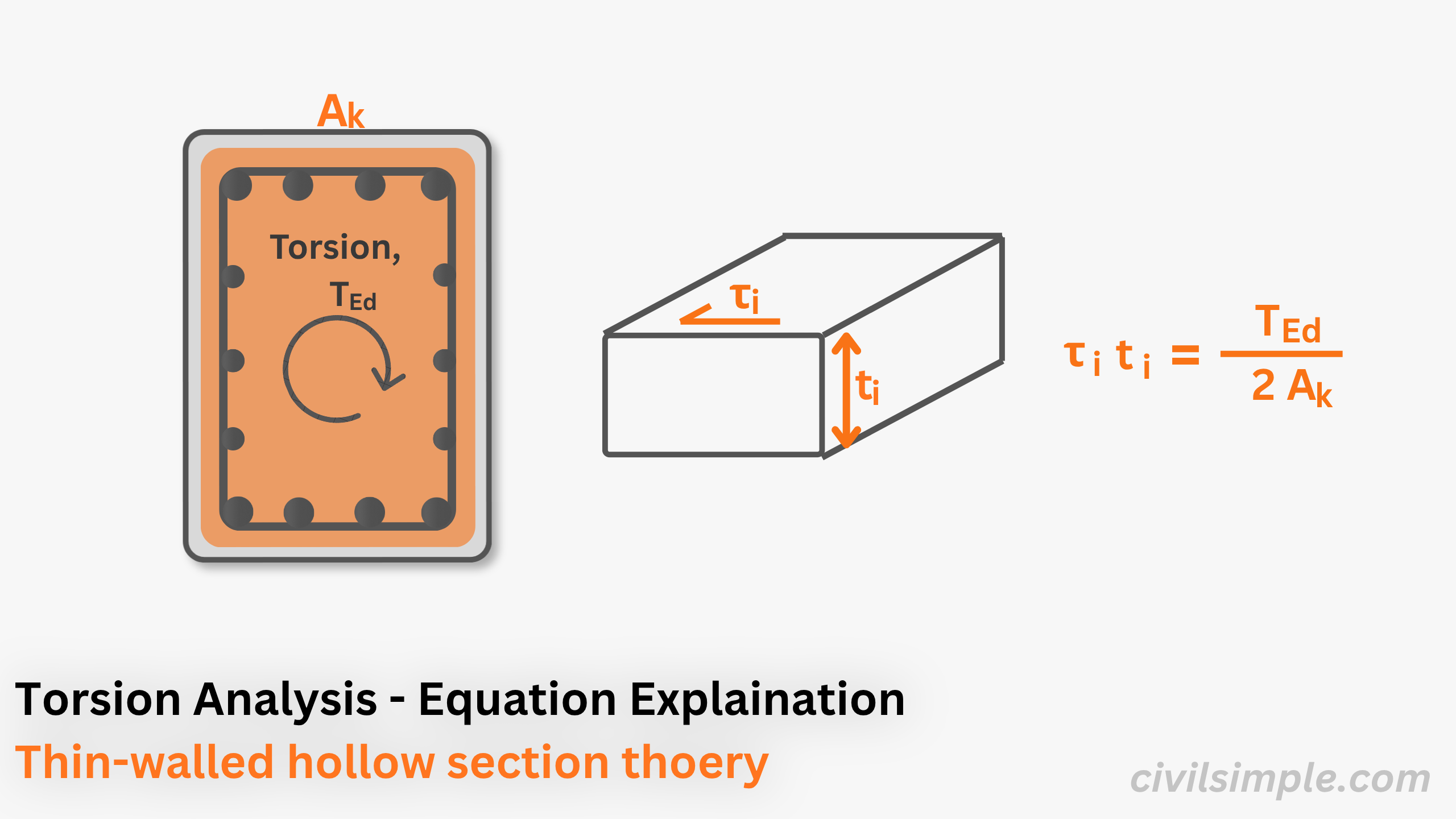

Learn the derivation of the EC2 thin-walled torsion equation through interactive SVG diagrams, shear flow, and force equilibrium explained step by step.
-

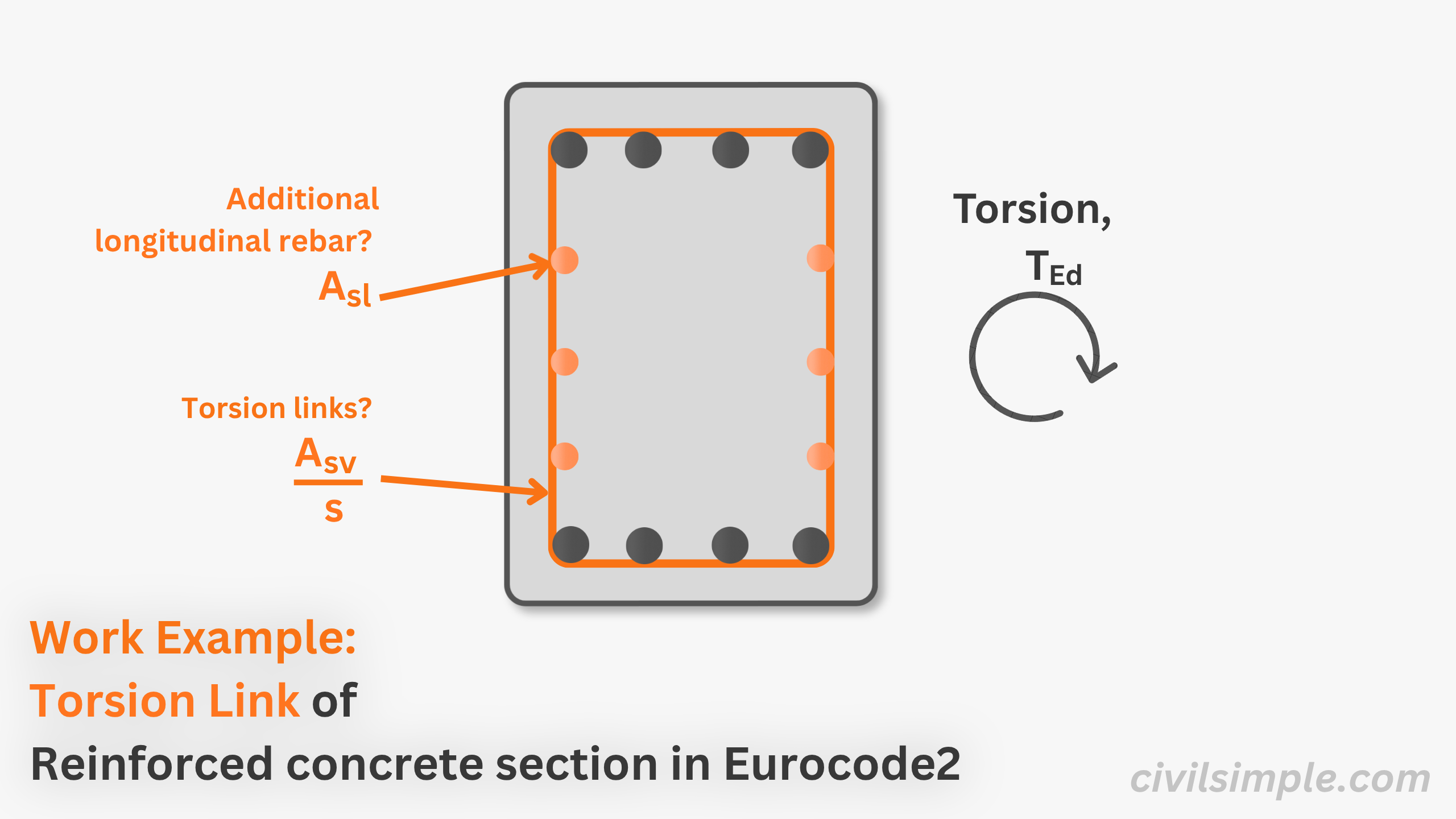

work-exampleEC2 Torsional Link Design - Worked Example
Worked example - torsional link design for a 500×600 mm RC beam to Eurocode 2 (EC2). Step-by-step from T_Ed to Asw/s using the closed-section truss model.
-
glossaryAn Introduction to Crack Width in Reinforced Concrete Design
Discover the core concepts of crack width in reinforced concrete design. Learn why concrete cracks, SLS serviceability checks, and how it impacts durability.
-
formulaFlexural Crack Width Calculation in Concrete in Eurocode 2
Learn how to calculate flexural crack width in reinforced concrete. This guide covers key factors, detailed formulas, and a step-by-step design workflow.
-
work-exampleCrack Width - EC2 Worked Example
Worked example - crack width calculation for a 500×700 mm RC beam to Eurocode 2 (EC2). Step-by-step from bending moment M_Ed to crack width w_k.
-
glossaryCrack Width Limits in Eurocode 2 - A Simple Guide
Understand crack control in Eurocode 2 (EC2), including crack width limits, exposure classes, and the requirements for durable reinforced concrete.
